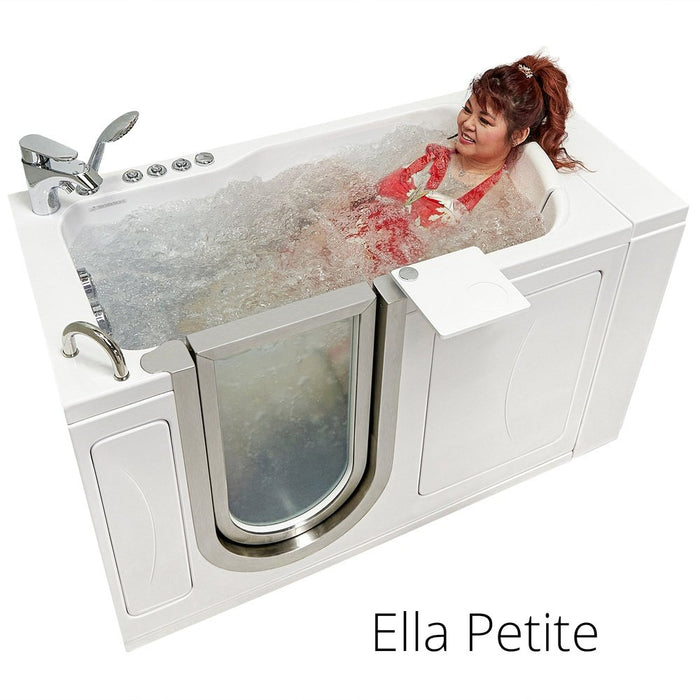

• Size: 27.50 in. x 52.25 in. x 38 in. (fits standard 60 in. opening with extension panel)
• Dual Drain Technology features 2 individually controlled 2 in. drains with easy to turn levers. 4 2” outlets allow for the fastest gravity driven drain in the industry.
• Cast acrylic high gloss finish easy to clean shell, fiberglass gel-coat reinforced.

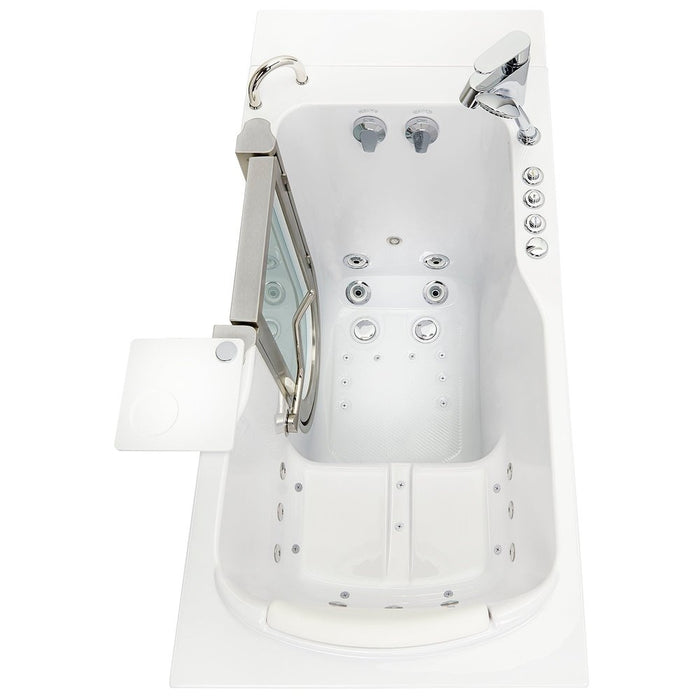

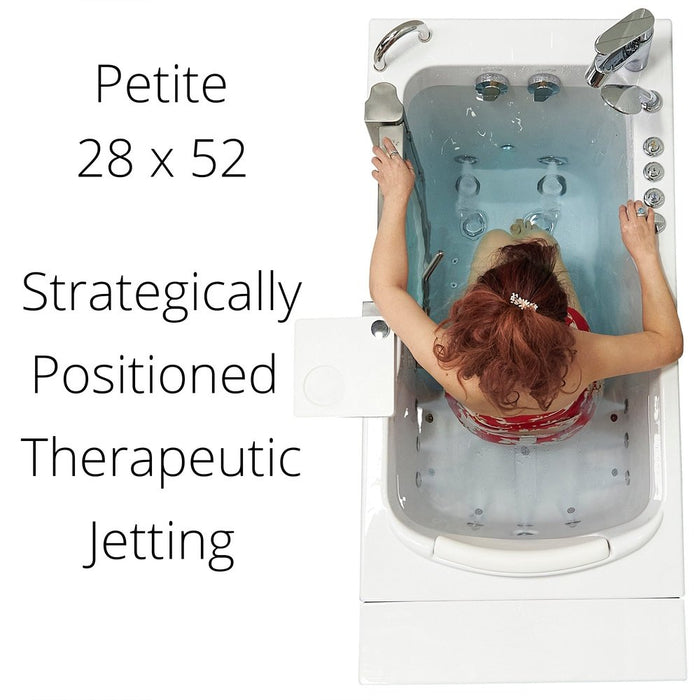

• Hydro massage comes with 10 fixed and 6 adjustable jets. Includes an intensity dial control, in-line water heater, and ozone sterilization to clean the system and water.
• Air massage comes with 16 strategically placed jets. Includes a 3-speed variable push control and auto purge to clean the system.

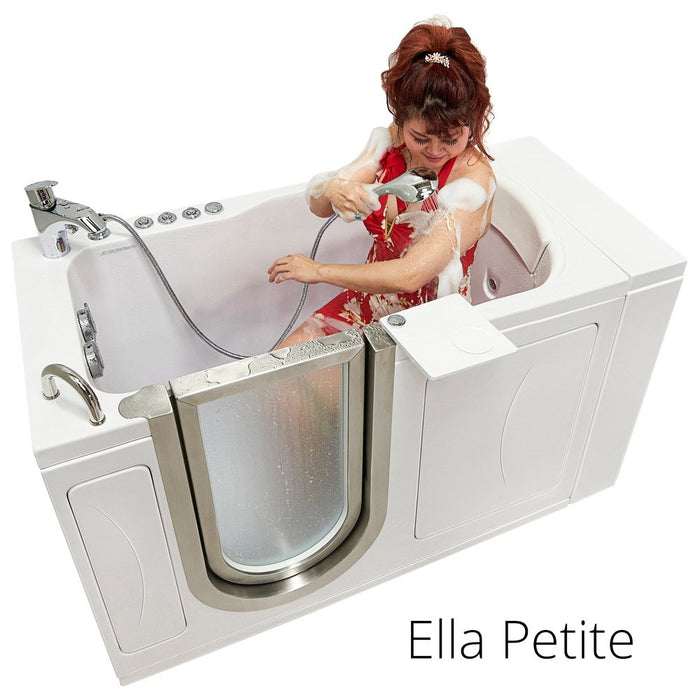

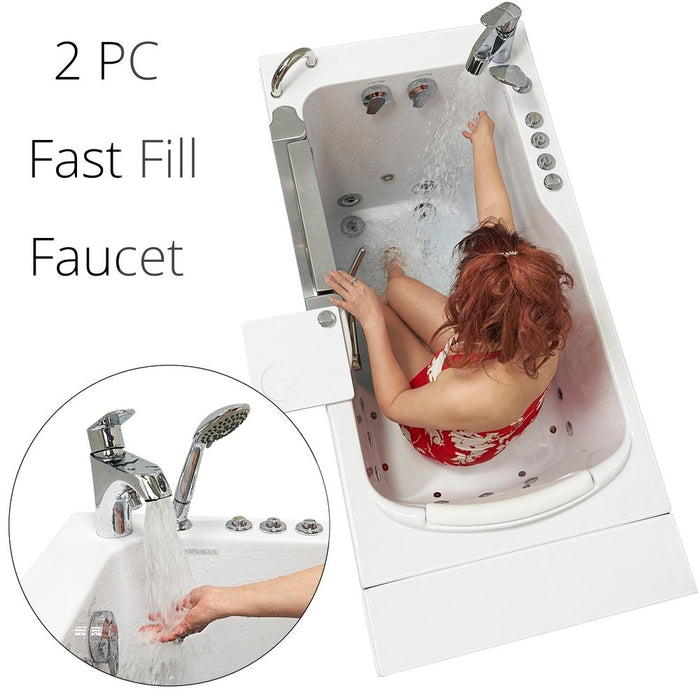

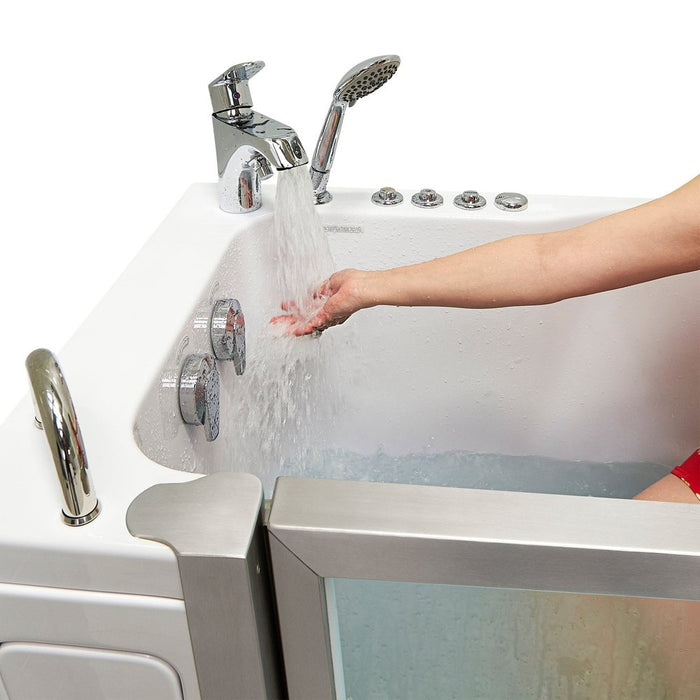

• Ella 2 Piece Fast-Fill Faucet fills up to 16GPM mounted faucet and has a pull out multi-functional hand shower in chrome finish.
• LED Chromatherapy features multicolor LED lights powered, creating a relaxing and harmonious experience at the push of a button.

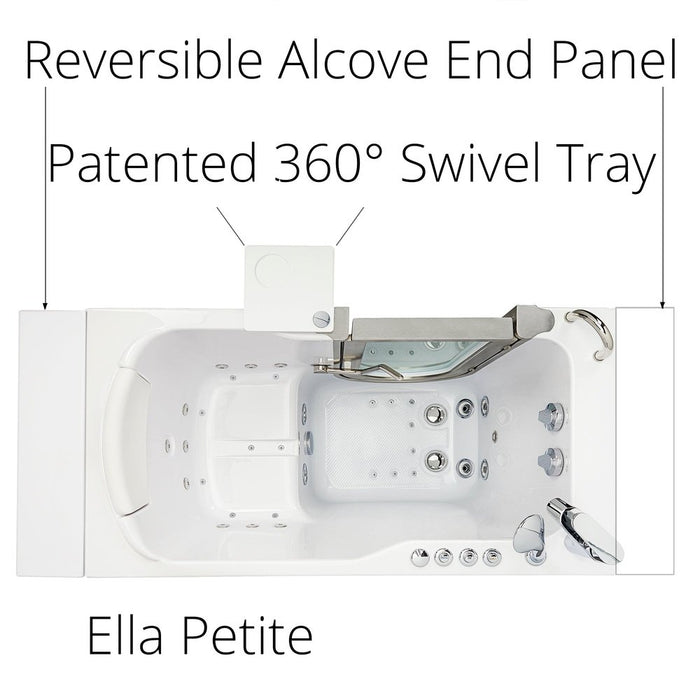

• 360° swivel tray can hold your beverage or valuables while you bathe.

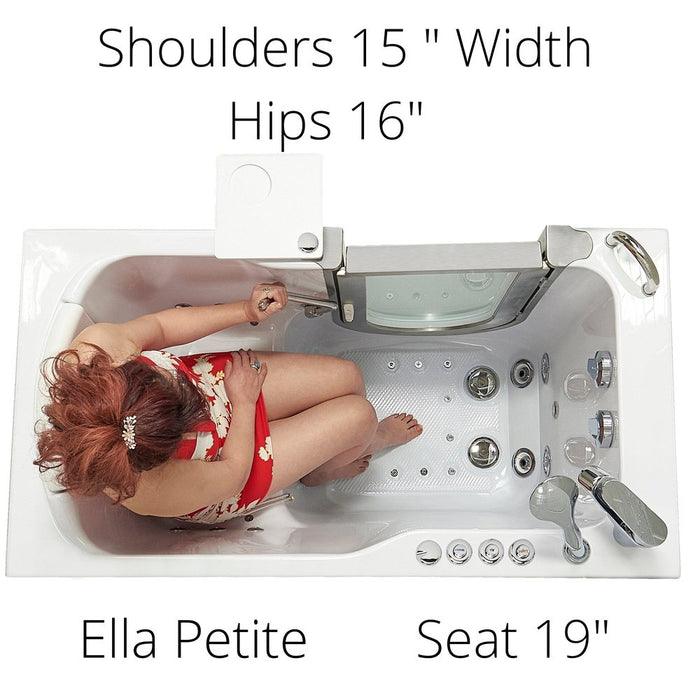

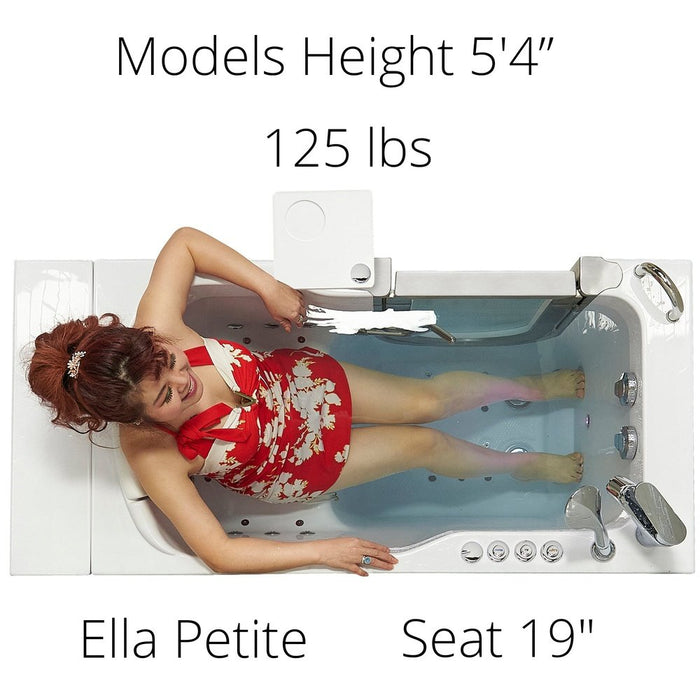

• Tub features a 21.75” wide seat.

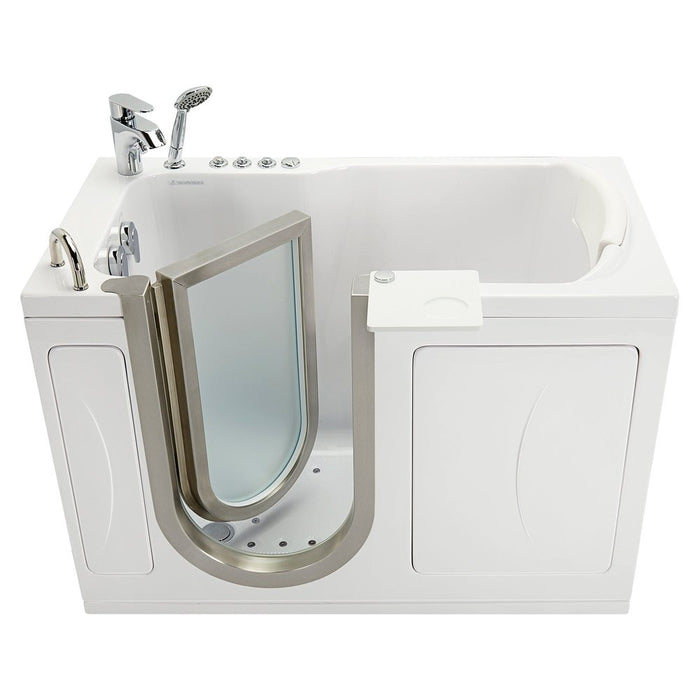

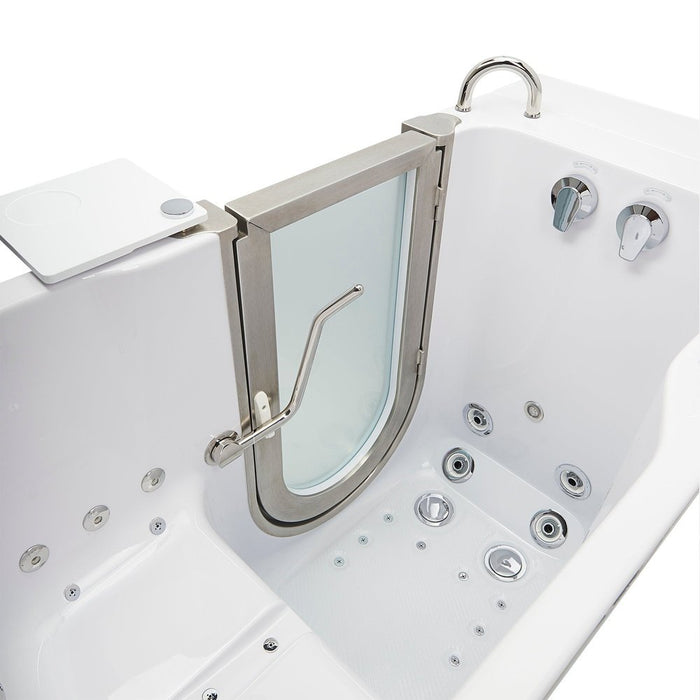

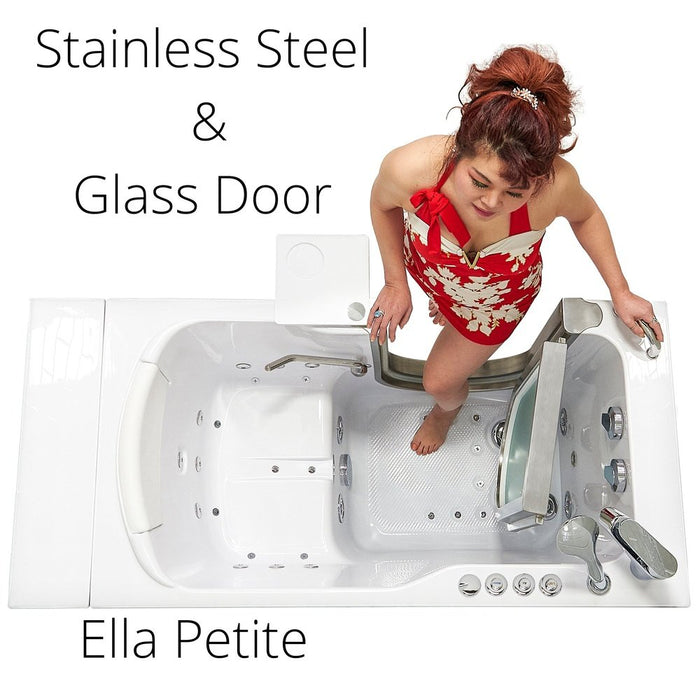

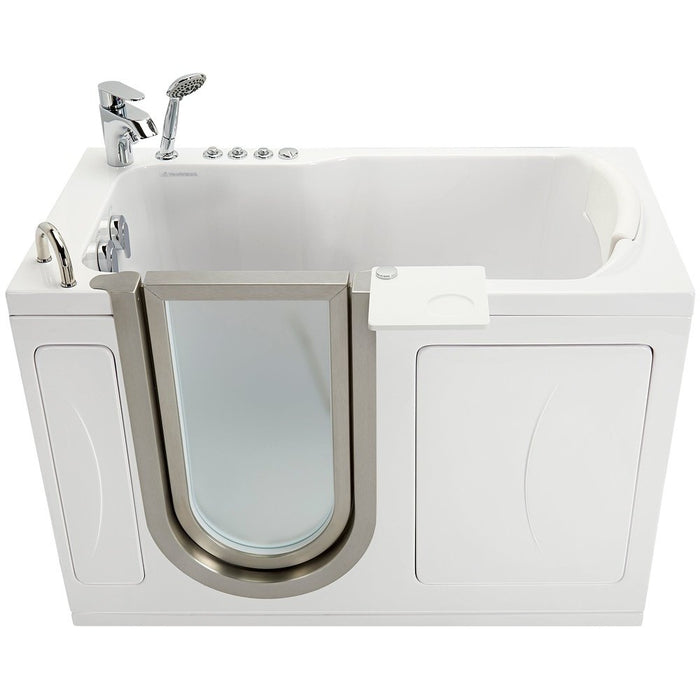

• Brushed stainless steel and frosted tempered glass door with an extended lever lock. Left inward swing door.
• 1 stainless steel grab bar. Detachable wide backrest for comfortable back support.

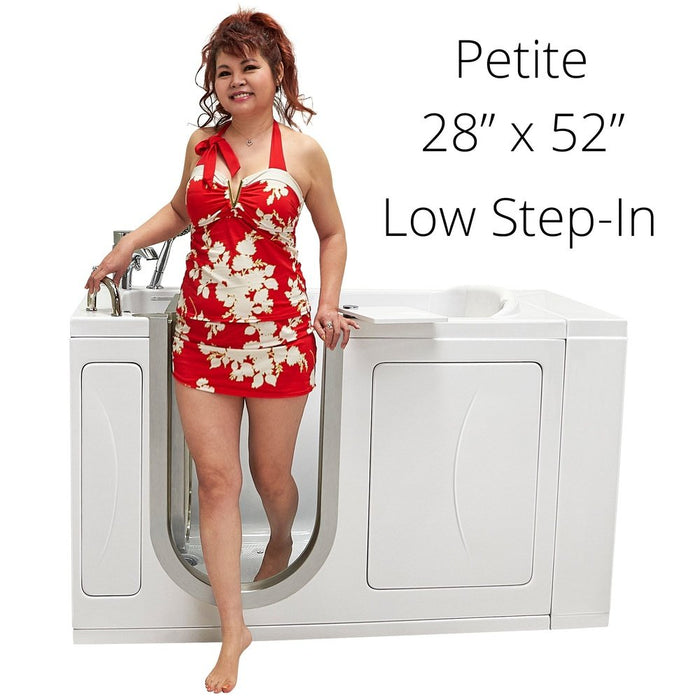

• Low step-in 6 in. threshold and a textured slip resistant floor. Removable toe kick access panel allows a lower threshold.
• Includes 2 overflows, two 5 ft. incoming supply lines and 2 drain elbows.
• Rugged stainless steel frame which distributes weight over adjustable leveling legs.
• By utilizing the wall extension kit and the end access panel(s), your Ella walk-in bath can easily be installed into a 2 or 3-wall setting and even has the capability to be a freestanding unit so it retro-fits into almost any existing bathroom.
• Limited lifetime warranty*


•Spec Sheet


•Owner's Manual


•Operating Instructions

Hydro Massage System

The Hydro Massage System includes: a hydro pump with an in-line water heater, eco-friendly ozone sterilization system, hydro massage intensity dial control, and strategically positioned hydro jet system for targeted and effective massaging.

The in-line water heater helps maintain the water temperature at constant level while bathing, if the water tank can produce enough hot water. It is suggested to upgrade to the largest available 75-gallon water heater to ensure enough hot water. Please consult with a professional contractor to determine if your water tank can provide enough hot water for a walk-in bathtub. Our ozone sterilization system is the most eco-friendly, chemical free disinfectant that can eliminate a wide variety of inorganic, organic, and microbiological bacteria. The sterilization system is especially helpful in eliminating odors and hygienic maintenance. The in-line water heater and ozone sterilization automatically engage when the hydro massage push control is pressed down when turning on your jets. The hydro massage intensity dial control allows you to adjust the strength of the water stream by adding more or less air into the hydro system.

The Ella 32” x 72” has eight (8) strategically placed hydro jets in order to deliver optimal therapeutic relief. These jets provide relief to your back, hips, thighs, feet and calves.

Air Massage System

The Air Jet Massage System includes an air pump with a 3-speed variable push control, strategically positioned air jets for optimal therapeutic relief, and an auto-purge to maintain an air system free of any build ups. The Air Massage System’s most popular control system is the on/off push control because the buttons were designed to rise above the deck in order to make it easier to push.

The 32” x 72” has twenty (20) strategically placed air jets that pull in air and blow it into the water to create a gentle, relaxing massage. These fixed flat jets work to provide relief to your back, hips, thighs, foot, and legs.

The Air Jet Massage System also includes an auto-purge feature. This feature engages automatically 20 minutes after the pump has been turned off to purge water out of the air jet lines. The auto-purge will run for 120 seconds to ensure your system is clear and free of moisture and excess water helping to prevent the mildew buildup.

Note: This massage is gentler than a Hydrotherapy Massage.

Infusion Microbubble Therapy

Ella Infusion™ Microbubble Therapy System consists of a single Microbubble jet connected to a hydro pump and Microbubble Tank System. The high-pressure hydro pump, along with the Microbubble tank, breaks down the water molecules into billions of tiny bubbles which are then sent out through the single jet. At the push of an on/off button, this feature can provide a moisturizing, exfoliating therapeutic experience all while detoxifying and relieving skin related issues.
