Overview

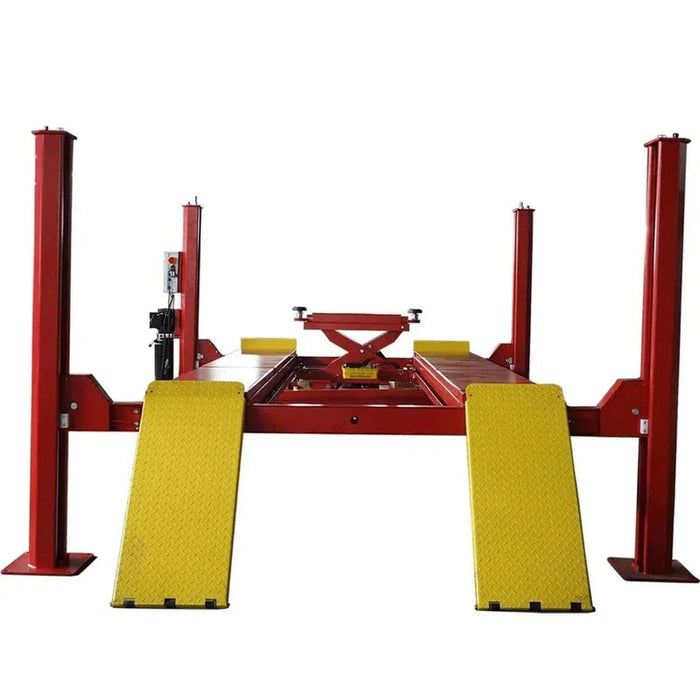

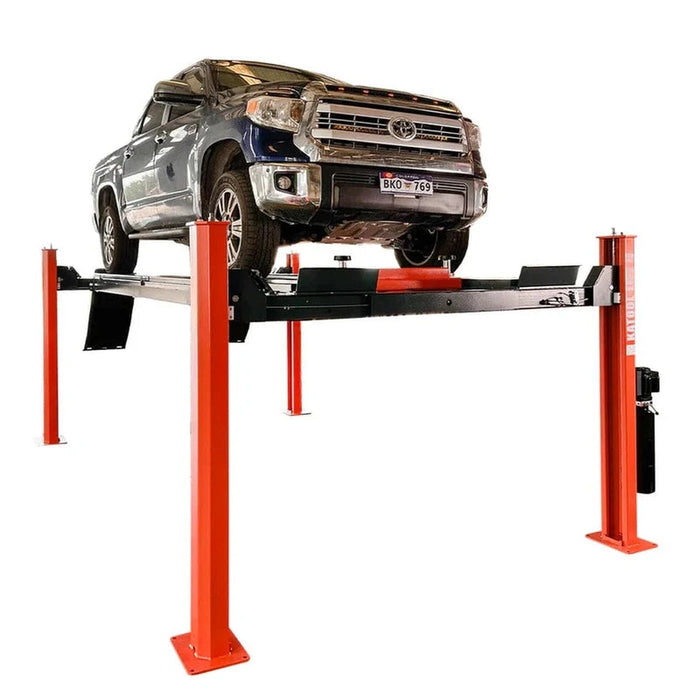

The Katool KT-4H150 Heavy Duty 4-Post Alignment Lift offers exceptional performance and reliability with a robust 15,000 lbs lifting capacity. CE approved and certified, it meets rigorous standards, including 115% dynamic loading capacity and 150% static loading capacity testing. This lift is designed for safety, efficiency, and versatility, making it the ideal choice for heavy-duty vehicle alignment and lifting operations.

Equipped with a single-point manual safety lock release and four mechanical locking devices featuring primary and secondary safety locks, the KT-4H150 ensures secure and controlled operation. Its non-skid diamond platforms, adjustable safety lock ladders, and optional (contact us to add it to your order) turn tables for wheel alignment further enhance its functionality. Powered by a high-quality hydraulic system with a 3KW motor, this lift is available in 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations. Additionally, it includes one 6,000 lbs rolling jack for added convenience.

Key Features

• 15,000 lbs Lifting Capacity: Ideal for heavy-duty vehicles.
• CE Approved and Certified: Meets 115% dynamic and 150% static load capacity standards.

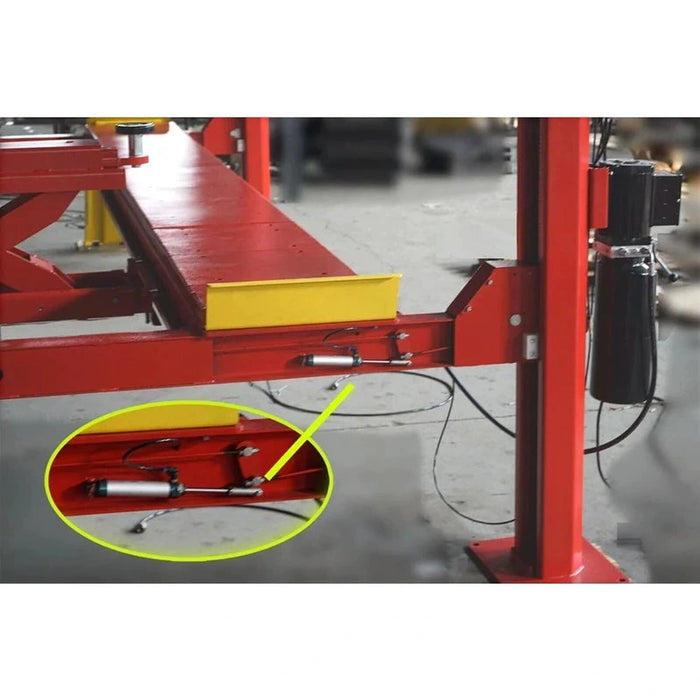

• Single-Point Manual Safety Lock Release: Ensures secure and efficient lifting operations.

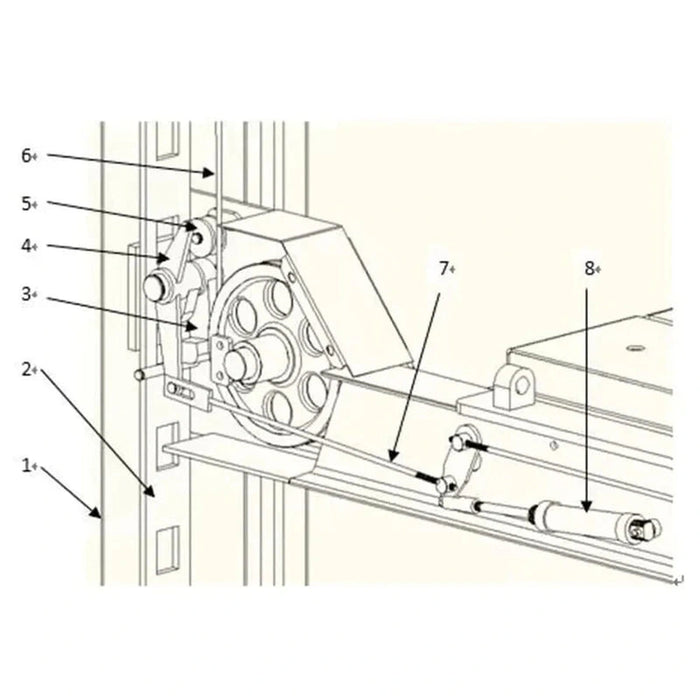

• Four Mechanical Locking Devices: Each equipped with primary and secondary safety locks for enhanced security.

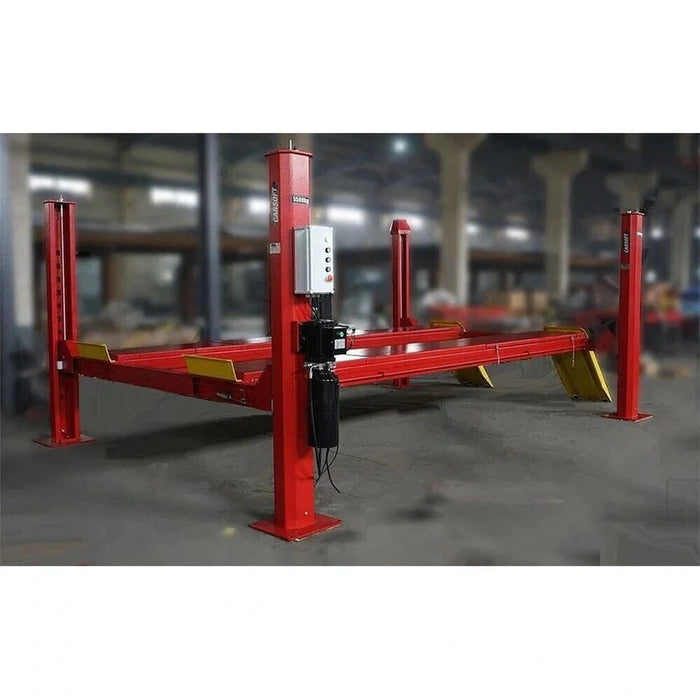

• Powerside Column: Flexible installation options at either side, front, or rear.
• Non-Skid Diamond Platforms: Provides stability and safety during operation.

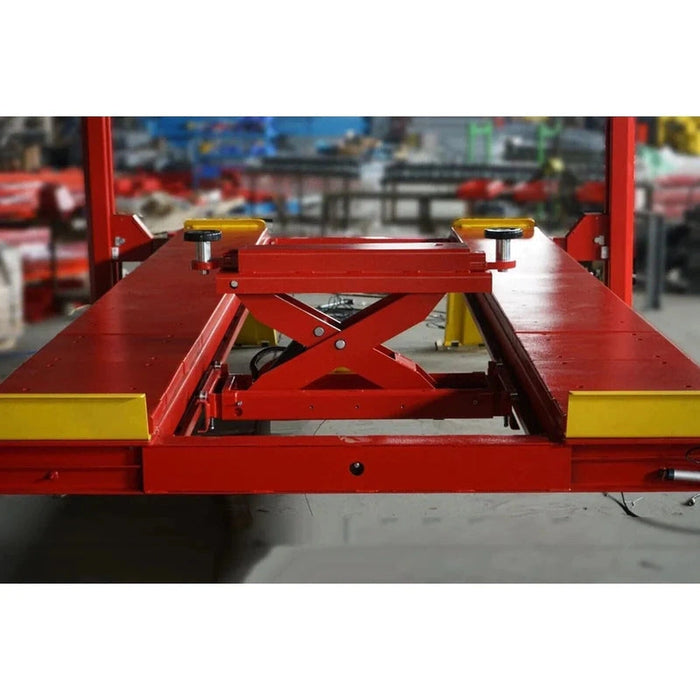

• Included Rolling Jack: One 6,000 lbs rolling jack for additional lifting capabilities.
• Optional Turn Tables for Wheel Alignment: Enhances the lift’s versatility for alignment tasks.

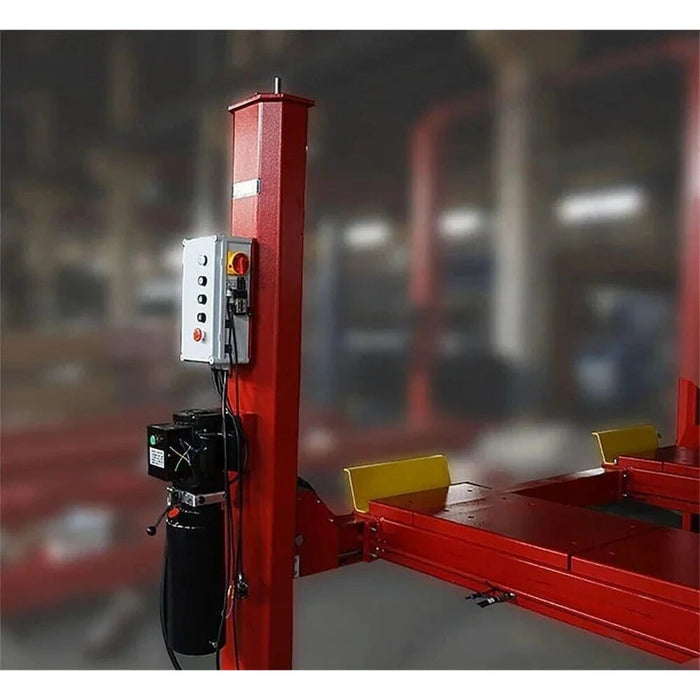

• High-Quality Hydraulic System: Powered by a 3KW motor, available in 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations.

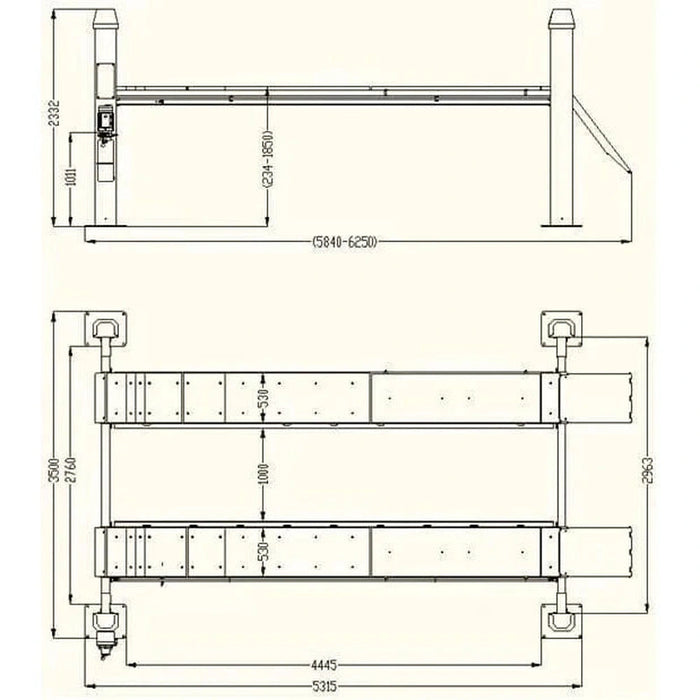

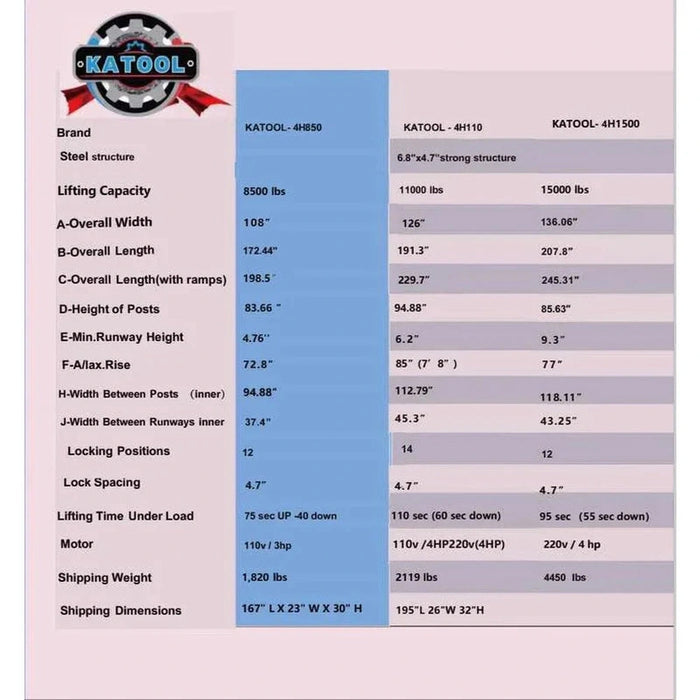

Specifications

User Manual

For detailed installation instructions, safety guidelines, and operating procedures, please refer to the Katool KT-4H150 User Manual. Click the link below to download:

Download User Manual (PDF)

Installation

*Concrete Requirements: Ensure a minimum concrete thickness of 3.93 inches (100 mm) with a 3,000 PSI rating. Failure to meet these requirements could result in serious injury or death.

Warranty

Katool provides a 1-year limited warranty on all parts and product defects. Additionally, vehicle lifts include a 3-year warranty on structural components. Optional 2-year extended warranty plans are also available.

Warranty Includes:

• Cylinders, power units, motors, displays, and electronics.
• Structural components for vehicle lifts.

Warranty Conditions:

• Claims must fall within the warranty period and are non-transferable.
• Replacement parts are provided free of charge, including shipping.
• Labor costs are not included in the warranty.
• Disassembly of equipment prior to warranty approval is not permitted.

All warranty claims are subject to review by the warranty/service department. Supporting documentation, such as photos or videos of defects, may be required for approval.
